Enhanced version of the popular FogBuster specifically set up for Tormach 1100M and 1100MX CNC mills.

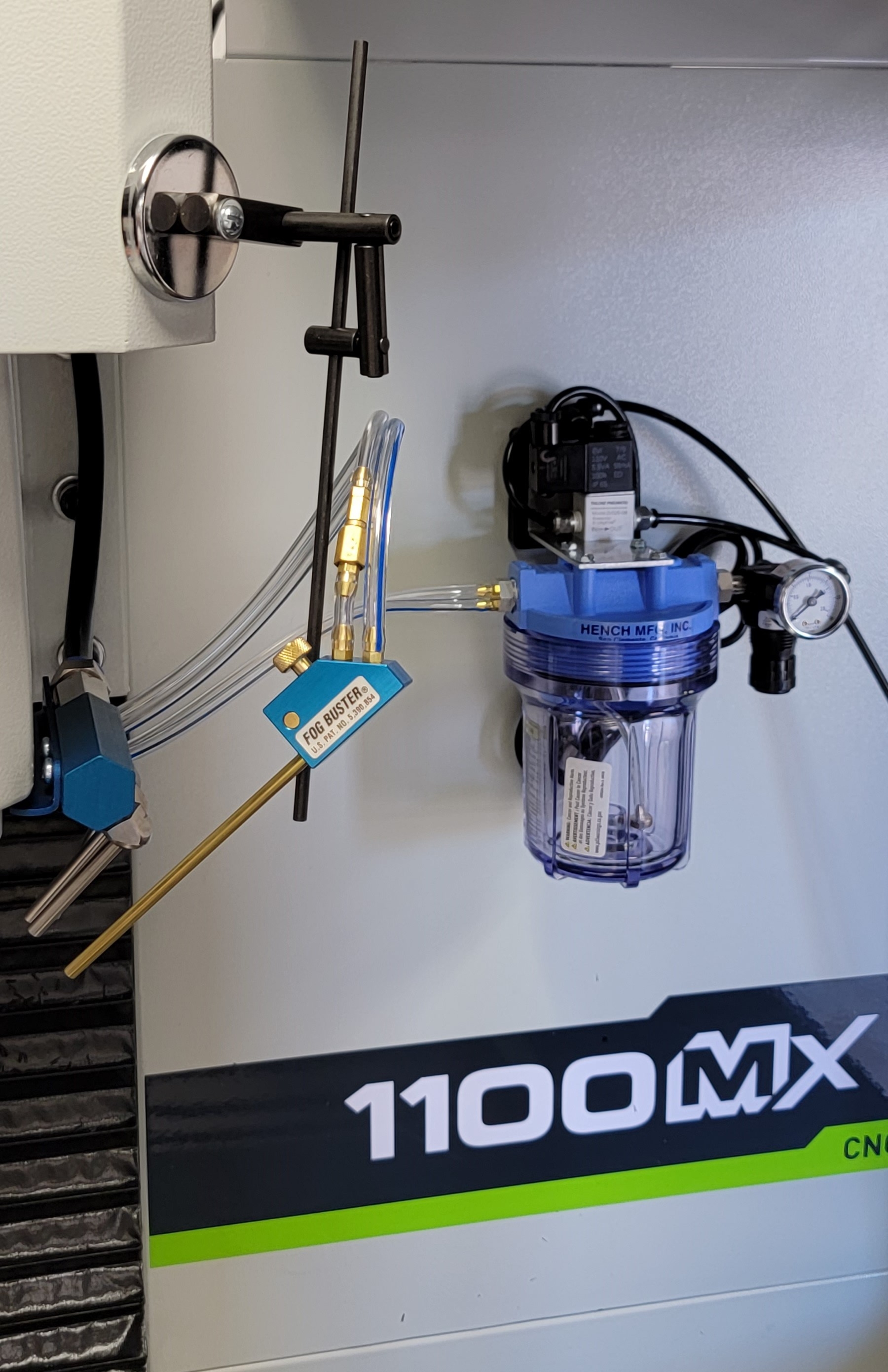

The standard large FogBuster mist unit is very effective and useful, but we have found that some improvements are needed to work well and to be truly great on these smaller CNC mills. We've configured an enhanced version of the FogBuster Mini specifically for the Tormach 1100M and 1100MX mill models that make a FogBuster much easier to work with on these Tormach models.

This kit works great, and we use it ourselves.

Here's what we've done:

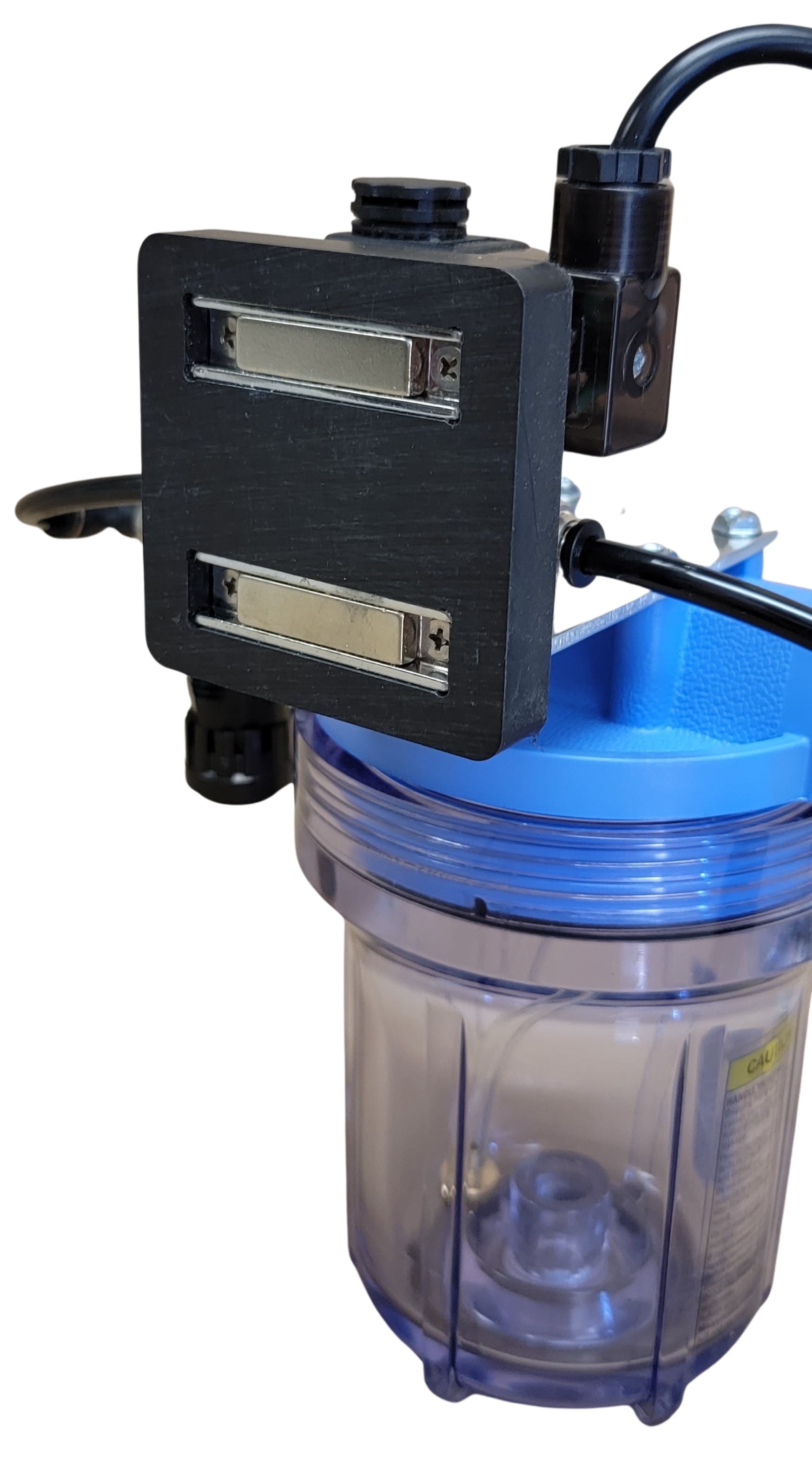

• Lengthened the special dual feed hose to allow more placement options Added a check valve to prevent backflow of the mist fluid between operations and tool changes Added a magnetic reservoir mount to allow flexible placement on outside of enclosure or shields for easy adjustment and refill
• The smaller Mini reservoir is lighter and easier to work with than the large and heavy full-size FogBuster. This size is ideal for typical light production and hobby use and has adequate capacity for long running between refills
• Power cord with correct IEC plug to connect to Tormach 1100MX and 1100M coolant M8/M9 controlled switched power outlet

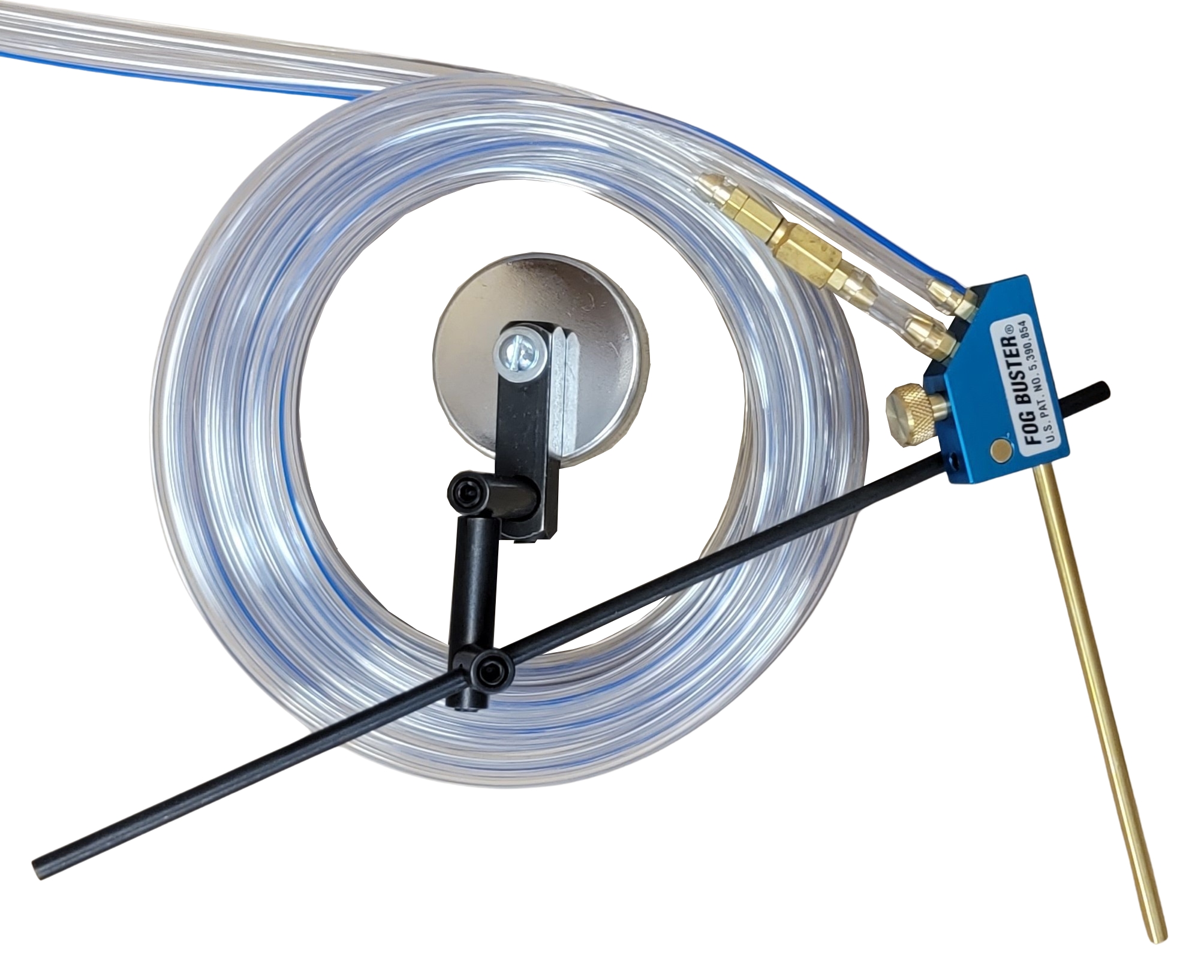

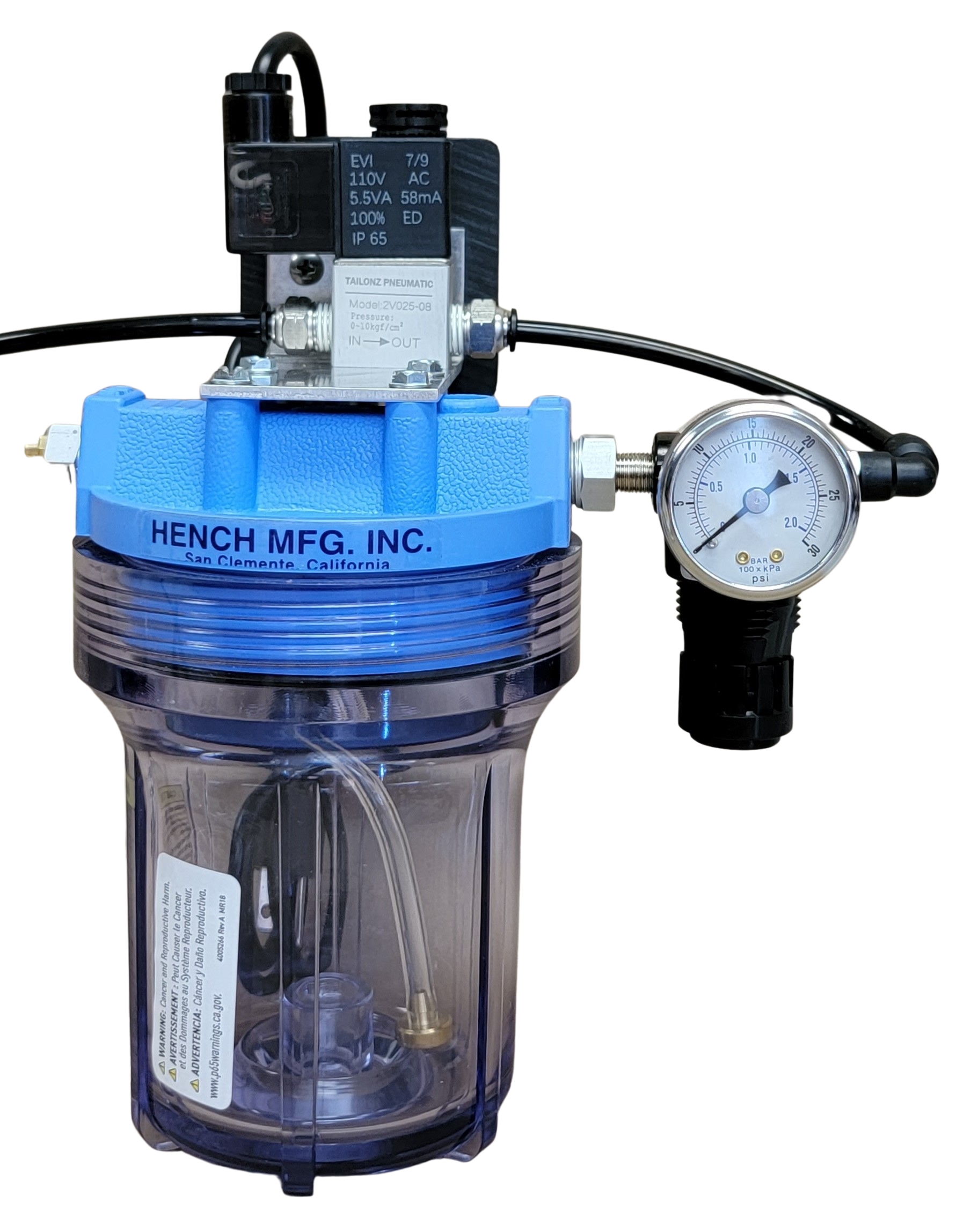

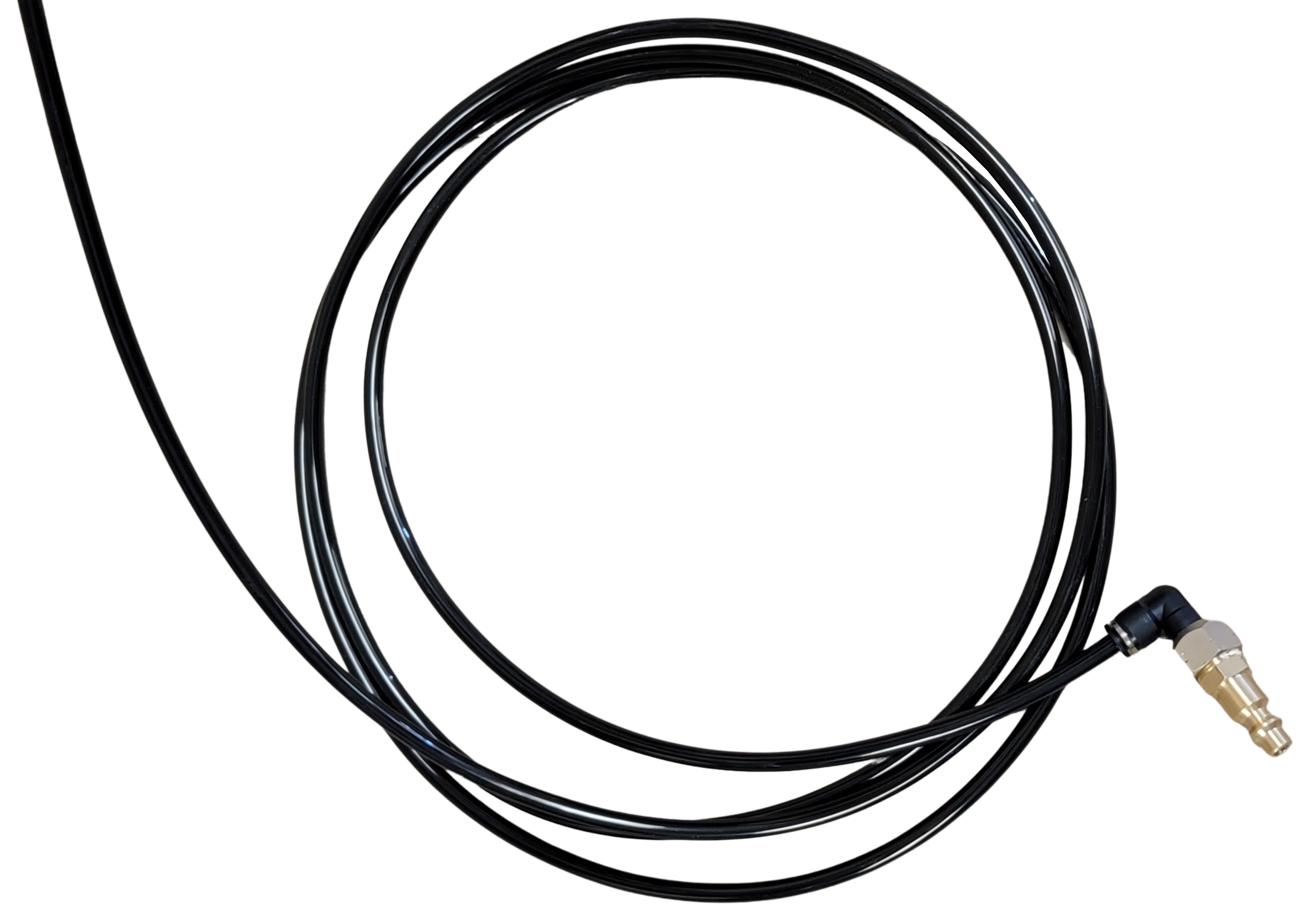

• Includes Mini FogBuster, reservoir, magnetic reservoir mount, pressure regulator, mist hose, check valve, mist head and articulating magnetic mount, 220v power solenoid, air connectors and air hose.

Please see our other listings for FogBuster mist units for other Tormach models. We have pre-configured kits for the 1100MX and 1100M, 770MX and 770M, PCNC440, and for the earlier Series 1 through Series 3 machines.
