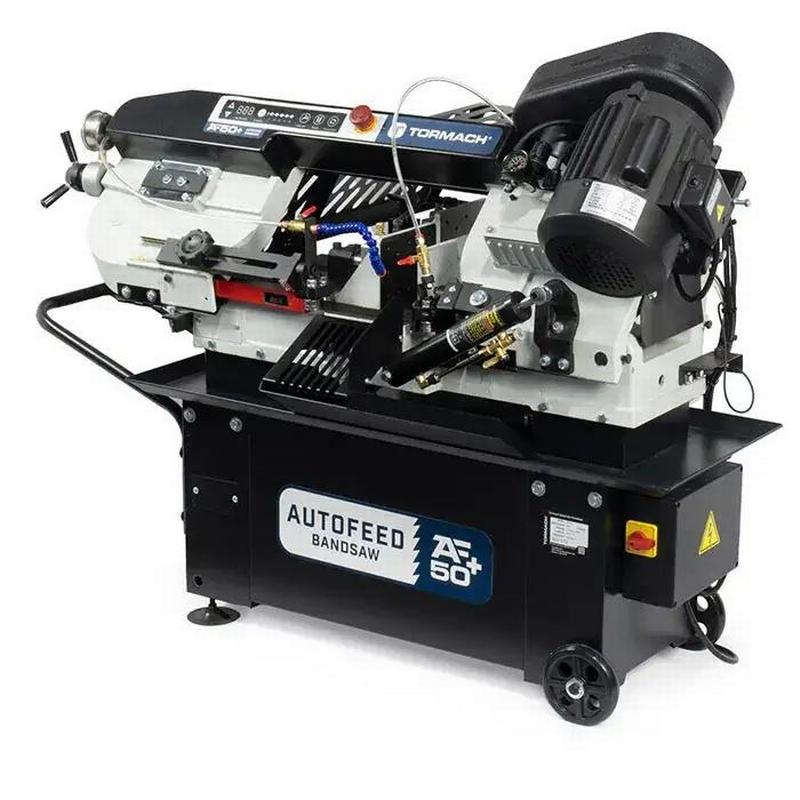

AF50 AUTOFEED BANDSAW

QUICKFACTS

The AF50+ Autofeed Bandsaw provides part length consistency over multiple parts and hands-free operation.

Use the AF50+ Autofeed Bandsaw to easily cut multiple parts with automatic workpiece positioning. The bandsaw’s part length consistency and hands-free operation make this an ideal companion to your CNC machine.

Features:

• Pneumatic clamping system with adjustable soft squeeze safely holds material from thin-walled tubing to 7 in. steel round bars
• Hydraulic feed control helps keep your blade cutting straight
• Four blade speeds accommodate a range of material and blade styles
• Integrated coolant system keeps your blade and workpiece cool and lubricated
• Built-in wheels and handle allow for movement around your shop
• Blade tension indicator for fast and easy tension adjustment after blade changes
• Built-in display for counting down parts and troubleshooting messages

Some assembly required.

Requirements:

• Power and Air:
  • Primary Power: 115 Vac, 50/60 Hz, single-phase
  • Required Circuit Amperage: 15 A
  • Compressed Air Source: 90 psi to 120 psi (620 kPa to 827 kPa)
• Space:
  • Minimum Depth: 36 in. (0.91 m) plus the length of stock
  • Minimum Height: 67 in. (1.71 m)
  • Minimum Width: 60 in. (1.53 m)
