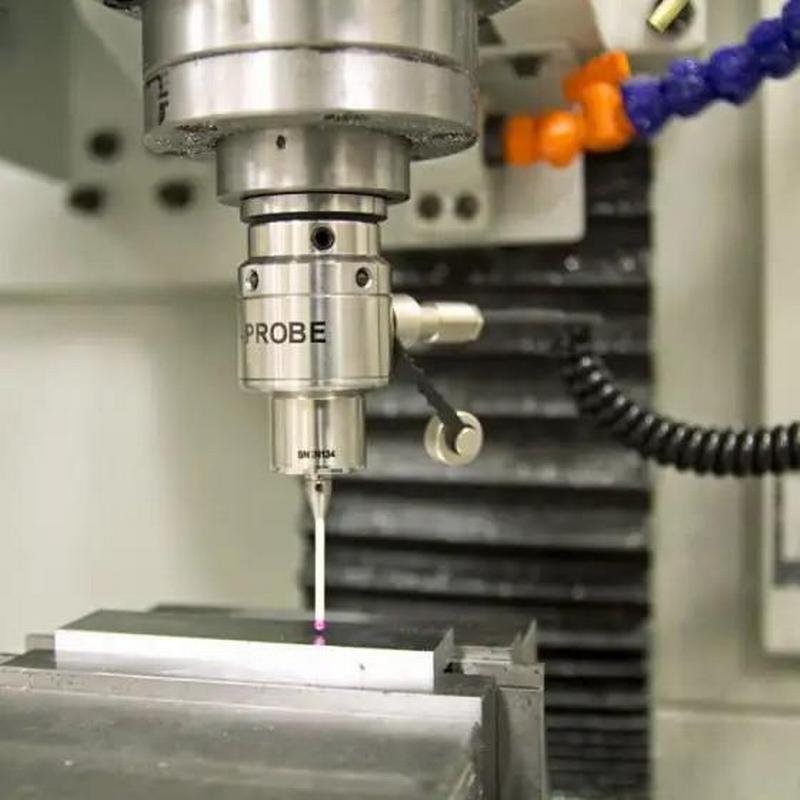

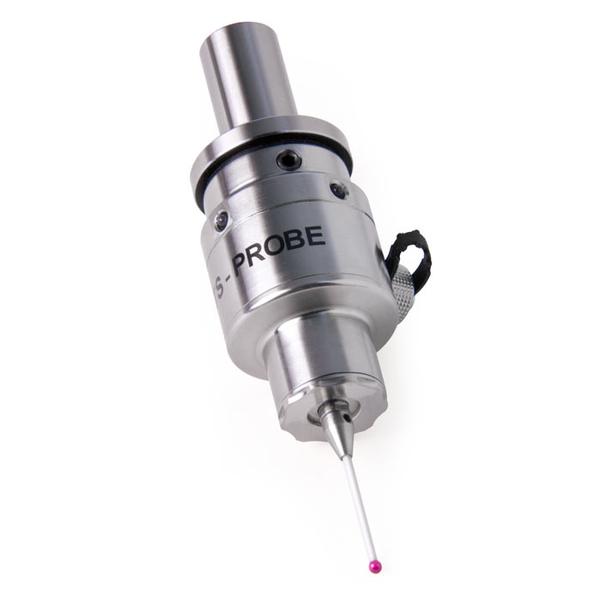

This 3D touch probe enables fast, reliable, and accurate setups, point finding, and digitizing. Compatible with the Renishaw M4 stylus family, its sealed contacts provide maintenance-free operation and dependability and features:
- 3D touch trigger probe
- Sealed contacts
- Integrated TTS toolholder geometry (not compatible with automatic tool changers)
- LED indicator light when triggered
- Plug-and-play integration with Tormach products
Compatibility
- 1100MX
- 770MX
- 1100M
- 770M
- PCNC 1100
- PCNC 770
Requirements
- PathPilot Controller
- NOTE: 3/4" collet required to hold probe for 1100MX and 770MX mills.
Specifications
| Sensing Logic |
Normally open |
| Probe Tip |
- Length: 40 mm
- Tip Diameter: 3 mm
- Compatible with Renishaw M4 stylus family
|
| Repeatability |
0.000078 in. (0.002 mm) |
| Maximum Over-Travel In +Z |
+ .1968 in. (5.0 mm) |
| Maximum Angular Displacement |
± 12 ° |

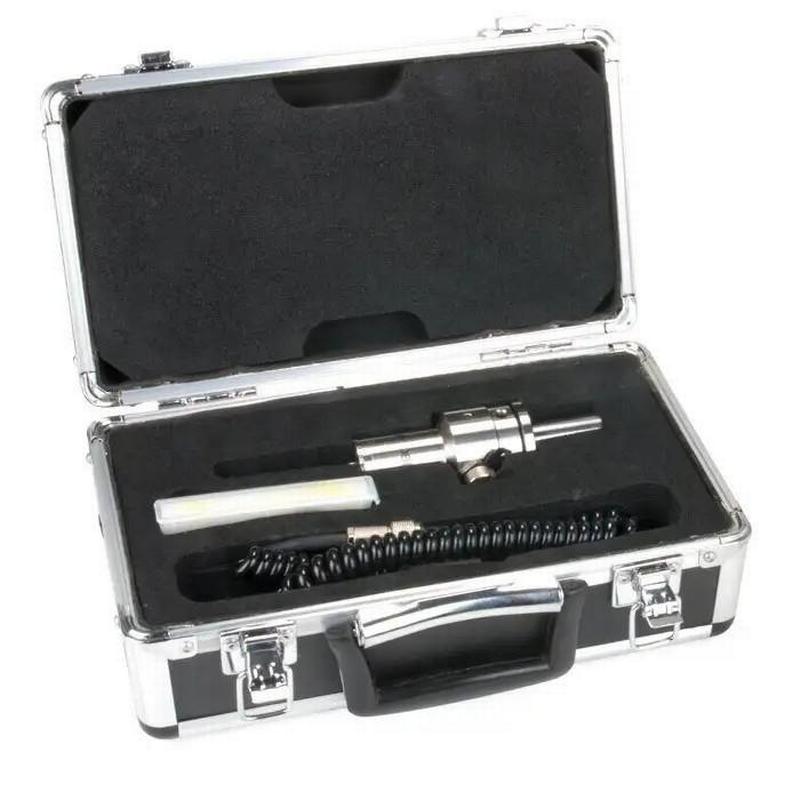

What's In the Box?
In addition to the probe, the kit includes:
- Ceramic stylus with ruby ball tip
- Factory inspection and certification report
- Fluid-resistant interface cable
- Installation wrenches:
- Protective storage case with fitted foam lining
