ZA6 ROBOT
ZA6 Light Curtain Safety Device Short
Part Number: 51173
QUICKFACTS The ZA6 robot requires the presence of a safety input to function. The 51173 light curtain sender/receiver pair comes with mounting hardware and is pre-wired with an M12 connector for use with the ZA6’s safety input.
Specifications:
- Dimension: 1.43 in. x 1.18 in. x 13.23 in. (36.5 mm x 30 mm x 33 mm
- Working distance between transmitter and receiver: .79 in. - 118.11 in. (20 mm - 3000 mm.)
- Detection resolution (minimum detected size): .98 in. (25 mm)
- Effective Aperture Angle: Less than 5 degree at 3.28 ft. (3 m)
- Response time: 10ms – 65ms
Environmental resistance:
- Enclosure rating: IP65
- Ambient light: Incandescent lamp: 3,000 lux max., fluorescent lamp : 3,00 lux max., Sunlight: 10,000 lux max.
- Operating ambient temperature: -4° - 140° F (-20?-60?)
- Operating relative humidity: 35% to 85% RH
- Pre-wired for use with ZA6 Robot

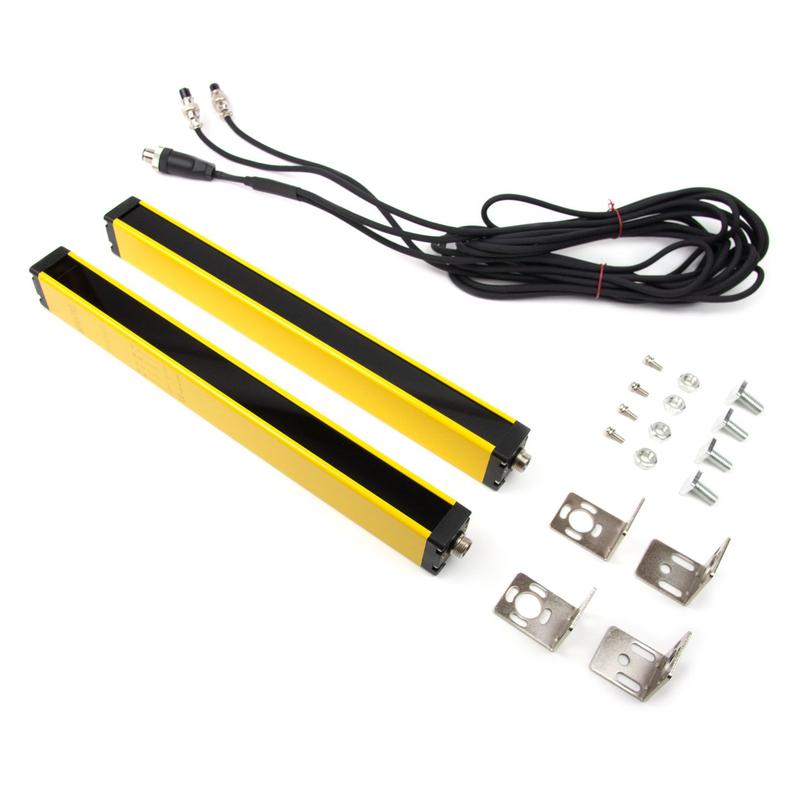

What’s in the box:
- Sender/receiver pair
- Mounting brackets
- Mounting T studs
- 10m cable with M12 connector
Price:
$355.00
|
